SW Stainless Steel Weights
Detail
Click to download Product Catalogue
Class F1 weights are ideal for testing and calibration of high precision balances. They are made of one single piece of stainless steel (monobloc).
Class F2 weights are ideal for routine testing of high precision balances.
Class M1 weights are ideal for routine testing of general scales. They are designed with an adjusting cavity at bottom which allows optimized and easy adjustment.

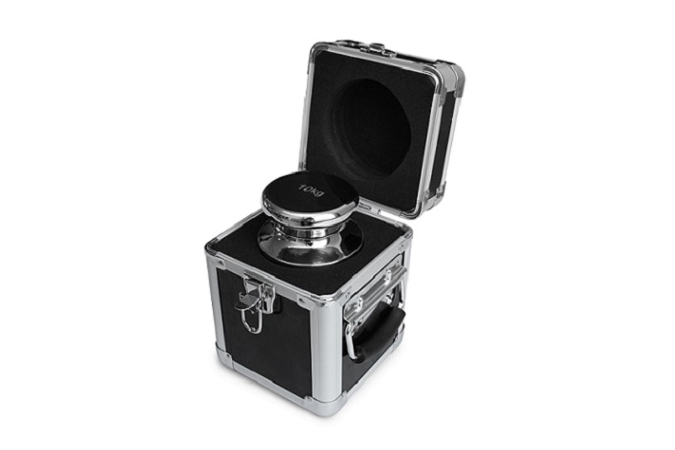

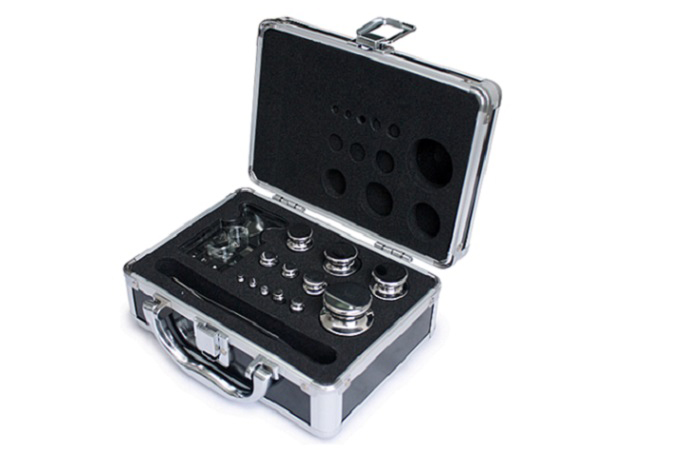

All set of weights and individual weights of 1kg or higher come with an aluminum box, while individual weights 100g ~ 500g come with plastic cylinder enclosure.
Definitions and Applications of Various Weight Classes (extracted from OIML R111)
- Class F1: - Weights intended for use in the verification or calibration of class F2 weights and for use with weighing instruments of special accuracy class I and high accuracy class II.
- Class F2: - Weights intended for use in the verification or calibration of class M1 and possibly class M2 weights. Also intended for use in important commercial transactions (e.g. precious metals and stones) on weighing instruments of high accuracy class II.
- Class M1: - Weights intended for use in the verification or calibration of class M2 weights, and for use with weighing instruments of medium accuracy class III.
Specifications
|
Class |
F1 |
F2 |
M1 |
Mass Range |
Packing |
|
|
Model |
F1-SSW-10001 |
F2-SSW-10001 |
M1-SSW-10001 |
10kg~1mg |
Aluminum Box |
|
|
F1-SSW-51 |
F2-SSW-51 |
M1-SSW-51 |
5kg~1kg |
|||
|
F1-SSW-2001 |
F2-SSW-2001 |
M1-SSW-2001 |
2kg~1mg |
|||
|
F1-SSW-1001 |
F2-SSW-1001 |
M1-SSW-1001 |
1kg~1mg |
|||
|
F1-SSW-0501 |
F2-SSW-0501 |
M1-SSW-0501 |
500g~1mg |
|||
|
F1-SSW-0201 |
F2-SSW-0201 |
M1-SSW-0201 |
200g~1mg |
|||
|
F1-SW20 |
F2-SW20 |
M1-SW20 |
20kg |
|||
|
F1-SW10 |
F2-SW10 |
M1-SW10 |
10kg |
|||
|
F1-SW5 |
F2-SW5 |
M1-SW5 |
5kg |
Plastic Cylinder |
||
|
F1-SW2 |
F2-SW2 |
M1-SW2 |
2kg |
|||
|
F1-SW1 |
F2-SW1 |
M1-SW1 |
1kg |
|||
|
F1-SW05 |
F2-SW05 |
M1-SW05 |
500g |
|||
|
F1-SW02 |
F2-SW02 |
M1-SW02 |
200g |
|||
|
F1-SW01 |
F2-SW01 |
M1-SW01 |
100g |
|||
|
F1-SW50g |
F2-SW50g |
M1-SW50g |
50g |
|||
|
F1-SW20g |
F2-SW20g |
M1-SW20g |
20g |
|||
|
F1-SW10g |
F2-SW10g |
M1-SW10g |
10g |
|||
|
F1-SW05g |
F2-SW05g |
M1-SW05g |
5g |
|||
|
F1-SW02g |
F2-SW02g |
M1-SW02g |
2g |
|||
|
F1-SW01g |
F2-SW01g |
M1-SW01g |
1g |
|||
|
F1-SW500mg |
F2-SW500mg |
M1-SW500mg |
500mg |
Bag |
||
|
F1-SW200mg |
F2-SW200mg |
M1-SW200mg |
200mg |
|||
|
F1-SW100mg |
F2-SW100mg |
M1-SW100mg |
100mg |
|||
|
F1-SW50mg |
F2-SW50mg |
M1-SW50mg |
50mg |
|||
|
F1-SW20mg |
F2-SW20mg |
M1-SW20mg |
20mg |
|||
|
F1-SW10mg |
F2-SW10mg |
M1-SW10mg |
10mg |
|||
|
F1-SW05mg |
F2-SW05mg |
M1-SW05mg |
5mg |
|||
|
F1-SW02mg |
F2-SW02mg |
M1-SW02mg |
2mg |
|||
|
F1-SW01mg |
F2-SW01mg |
M1-SW01mg |
1mg |
|||
|
Construction |
|
|||||
|
Material |
|
|||||
|
In the interest of improvement, specifications may change prior to notice |
||||||
Option
- Aluminum Packing Box for F1/F2 and M1 Class 1, 2 and 5kg Individual Weight
